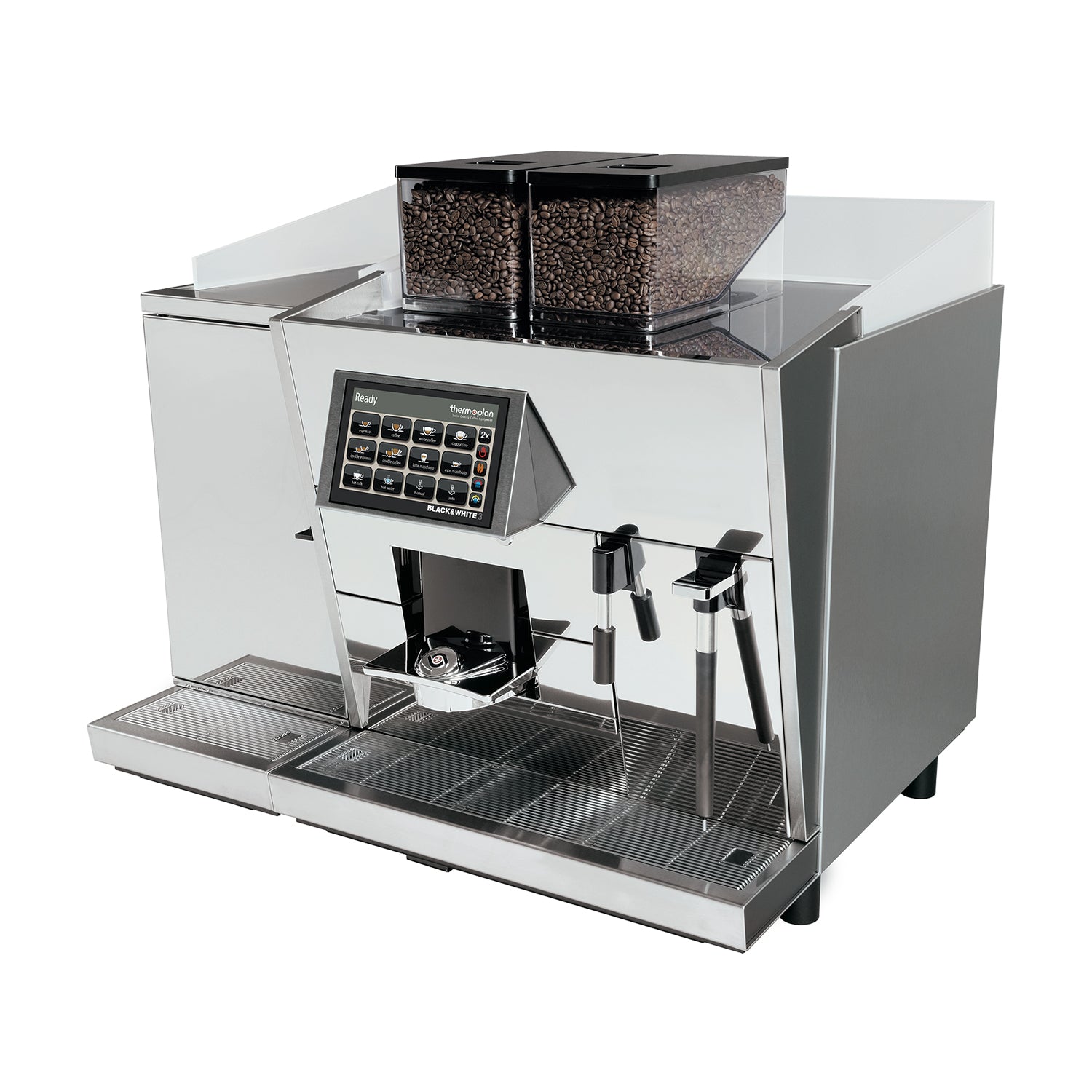

Thermoplan - Black & White 3 CTMS2 RF

BLACK & WHITE CTMS RF

Manufacturer Thermoplan AG, Weggis, Switzerland
Preparation of coffee specialties, hot water, milk/foam hot, milk/foam cold, steam
Capacity per hour 240 espressos / 200 coffees / 240 hot water / 130 cappuccinos
140 Latte / unlimited steam
Brief description The BLACK&WHITE3 CTMS RF prepares perfect specialty and milk coffees. At the same time, steam can also be dispensed.
The adjoining refrigerator has a 5-liter milk container.
Special features, the BLACK&WHITE3 CTMS RF has a modular design. Individual modules can be serviced or exchanged in a timely manner.
of time. Available with a standard socket or in POD version. The POD socket is a special height-adjustable socket that allows the use of all conventional coffee pods.

Conception • Modular assembly
• Heavy-duty aluminum grinder with ceramic discs
• Energy-efficient milk preparation thanks to the patented coil system
• Stainless steel brewing unit
• Chromed steel front
• Touch screen with 7-inch LCD screen
• PeekTM steam pipe
• Manual or automatic steam distributor
Dimensions (LxWxH) 770 x 600 x 700 mm Weight 100 kg
Coffee outlet height Standard 80-173 mm
POD Output 80-163 mm
Grinders 1 or 2 grinders
Grain hopper 1.5 kg each, 2.2 kg optional
Electrical connection Coffee machine 230 V / 50–60 Hz / 6900 W / 3x13 A
Refrigerator 230 V / 50-60 Hz / 100 W / 0.5 A
Water connection 3/8", pressure 2-4 bar / 30-60 psi, chlorine-free, TDS 70-200 ppm, hardness 5-8° dH
(8-14° fH), pH 6.8-7.4, alkalinity < 100 ppm, iron < 0.25 ppm

Placement The coffee machines can only be mounted and used on horizontal, flat, and fireproof surfaces. The device must have a
safety distance of at least 50 mm on all sides.
